Acrylic Glass Turnstile Full Height Sliding Gate Automatic Gates and Barriers Access Control Subway Speed Sliding Turnstile Gate

Name: Acrylic Glass Turnstile Full Height Sliding Gate Automatic Gates and Barriers Access Control Subway Speed Sliding Turnstile Gate
Brand: Shenzhen KOMAI Automation Technology Co.,LTD
SKU: KM-SL003
Availability: InStock

Merknaam:	KOMAI
Modelnummer:	KM-SL003

Detail Informatie

Productbeschrijving

Detail Informatie

Plaats van herkomst:

China

Certificering:

ISO, Rohs, CE, FCC

Beschermingsniveau:

IP66

Communicatie-interface:

Rs485, TCP/IP, RS-232

Barrièremotor:

Borstelloze motor

Toegang Contol Type:

QR-code, IC-kaart, RFID-kaart, vingerafdruk, gezichtsherkenning, ESD-systeem

Materiaal:

Aluminiumlegering, roestvrij staal, acrylglas

Sollicitatie:

Luchthavenkantoor Schoolpark Supermark Metro

Voeding:

AC220V/110V

Werkomgeving:

-10℃~+50℃

Trefwoord:

Snelheidsschuiftourniquet op volledige hoogte

Markeren:

acrylic glass turnstile access control

full height sliding gate barrier

automatic subway speed turnstile gate

Productbeschrijving

Acrylic Glass Turnstile Full Height Sliding Gate Automatic Gates and Barriers Access Control Subway Speed Sliding Turnstile Gate 0

Acrylic Glass Turnstile Full Height Sliding Gate Automatic Gates and Barriers Access Control Subway Speed Sliding Turnstile Gate 1

Product Description

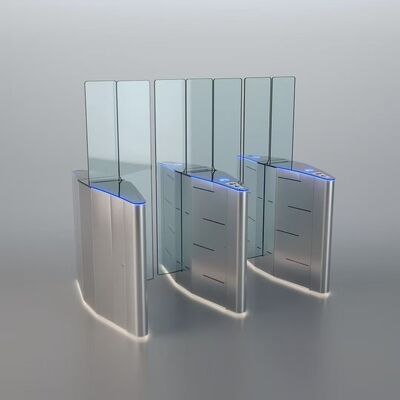

Sliding Turnstile

Intellgient sliding turnstile is the intelligent access management produced by our company after several years R & D , this equipment organically integrate machinery electronics microprocessor control,and all kinds of different reading and writing equipment. Through figuring all kinds of different reading and writing equipment,and adopting reliable performance safety protection devices real-time alarm system, and direction indicator interface, realizing the access intelligent control and management by the mutual coordination.

PRODUCT SPECIFICATION

Case Material

SS304(1.5mm, 2.0mm optional)/Baking varnish

Production Process

CNC Laser Cutting

Size

1200*330*980mm(Customization acceptable)

Power input

AC100-240V,50/60HZ

Operation voltage

DC24V, 3A, Power: 40W( Brushless Motor Optional)

Electromagentic

Duty Cycle 100%

Passage Width

550mm

Flap Size

300*1200mm(Customization acceptable for heigth)

Flap Material

Acrylic

Passage direction

Single directional/Bi-directional(Optional)

Operating time

1S

Throughput Rate

30-40 persons/minute(Normally Closed) or 40 persons/(Normally Open)

Reset Time after Power on

3S

MCBF

5,000,000 Cycles

Reset Time after failure

10S

Automatic Reset Function

Automatically locked within set time(Time Adjustable)

Operation Humidity

0~90%(No Freezing)

Operation Temperature

-10℃~+50℃

Operation Eenvironment

Indoor,Outdoor(Shelter)

Protection Level

IP45

Communication Interface

Standard RS485 interface, distance ≤1200 meters

Input Interface

Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA
